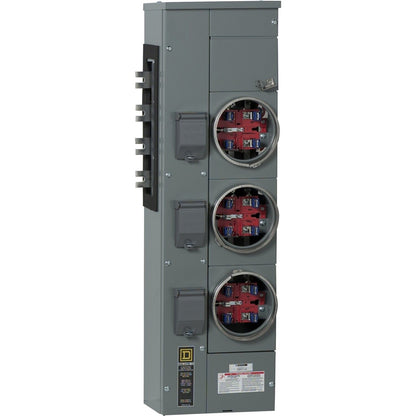

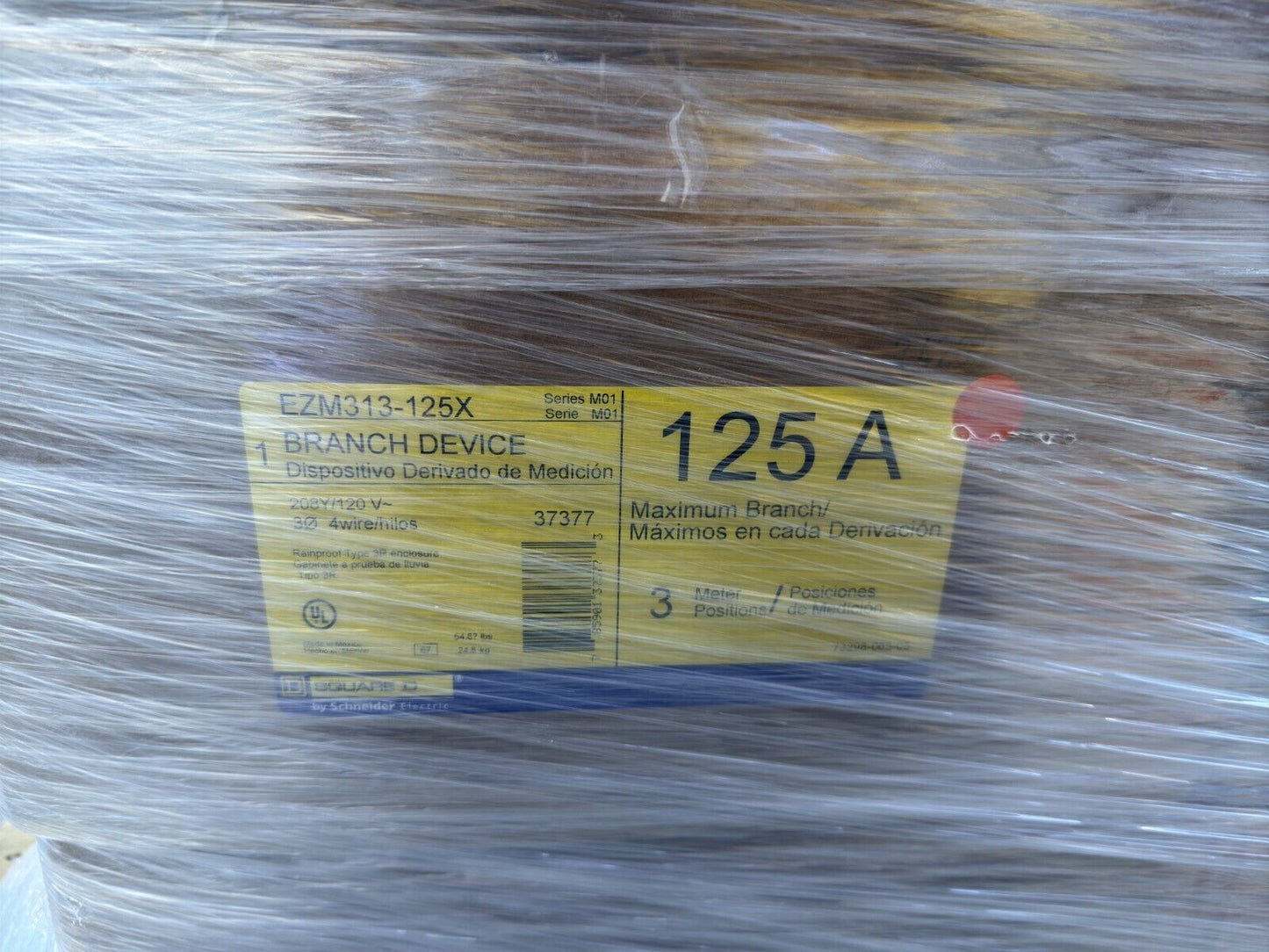

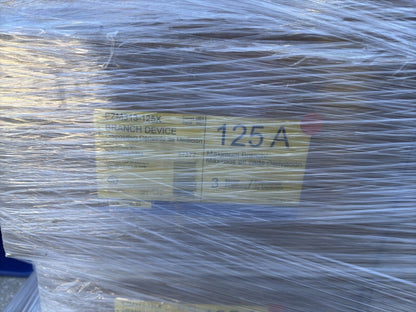

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 3 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Specifications
| Product | Meter Center Branch Unit |
|---|---|
| Current Rating | 125 A |
| Type | Meter-Pak |
| Bus Rating | 1200 A |
| Number of Jaws | 5 without jaw release |
| Number of Meter Sockets | 3 |
| Bypass Type | No bypass |
| Socket Type | Ringed |
| Certifications | UL Listed |
|---|---|
| Busbar Material | Aluminium/copper: busbar |
| Enclosure Material | Steel |
| Enclosure Rating | NEMA 3R |
| Maximum Voltage Rating | 208Y/120 V AC |
| Mounting | Surface |
| Phase | 3 phase in 1 phase out |
| Wire Configuration | 4-wire |
| Height | 42.37 in (1076.20 mm) |
| Width | 12.25 in (311.15 mm) |
| Depth | 7.09 in (180.09 mm) |
