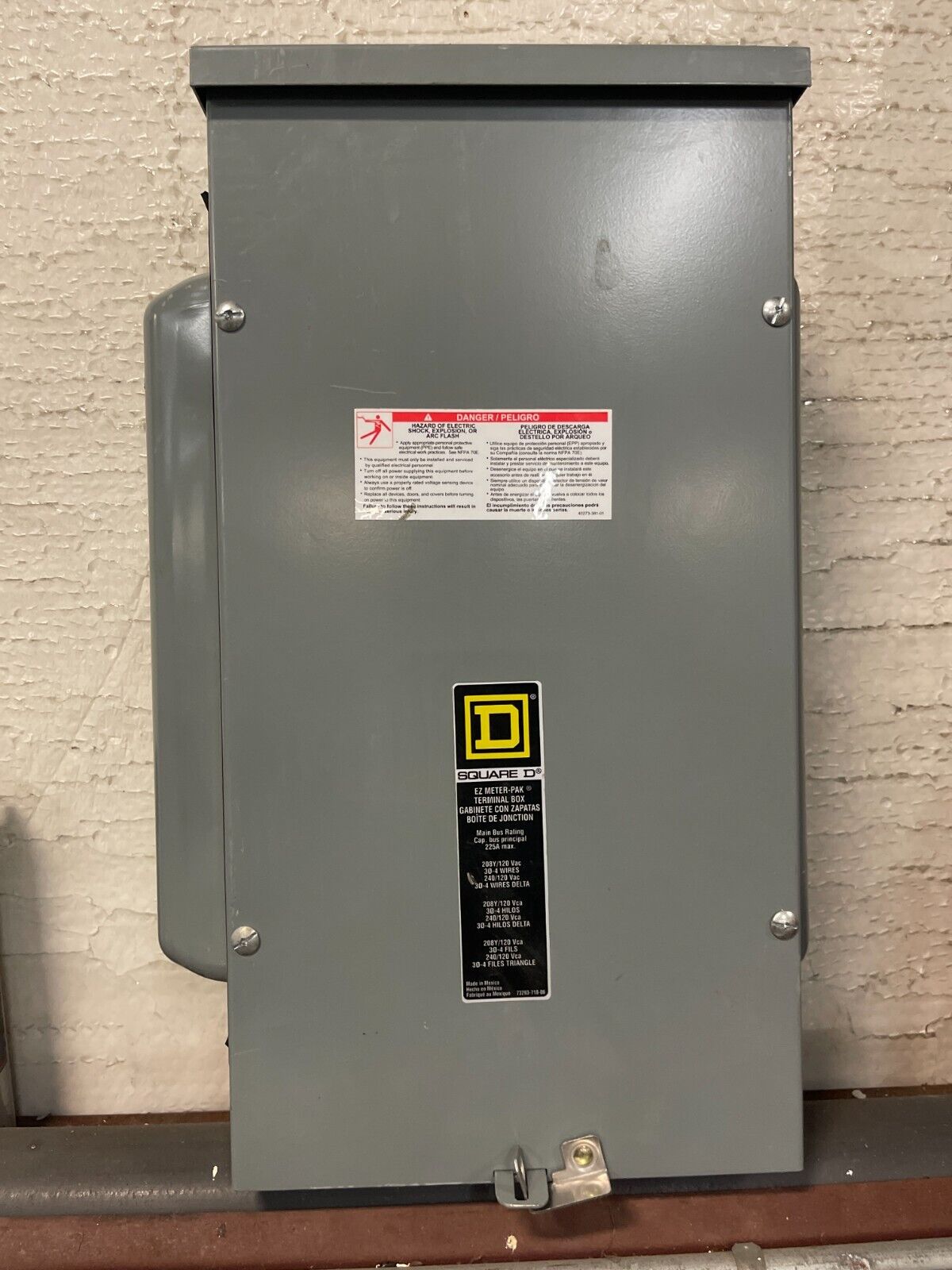

Square D EZM3225TB Main Lugs Terminal Unit 225A 240VAC 3PH/4W 800A Bus Type 3R
Square D EZM3225TB Main Lugs Terminal Unit 225A 240VAC 3PH/4W 800A Bus Type 3R
Regular price
$650.00 USD
Regular price
Sale price
$650.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
arrow2_down
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 225A with the busbar rated for 800A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.
Read less
Specifications
arrow2_down
| Range of Product | EZ meter-pak |
|---|---|
| Product or Component Type | Meter center main unit |
| Main type | Main Lugs |
| Included Items | Closing plate |
| Main rated current | 225 A |
|---|---|
| Bus rated current | 800 A |
| Enclosure Material | Painted steel |
| [Ue] rated operational voltage | 208Y/120 V AC 240/120 V delta AC |
| Device mounting | Surface |
| Number of Phases | 3 phase in 3 phase out |
| Service feed location | OH UG |
| Electrical connection | Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 1 AWG 4...300 kcmil aluminium/copper) line Lugs 1 AWG 4...300 kcmil aluminium/copper) neutral |
| Wiring configuration | 4-wire |
| Height | 21.81 in (553.97 mm) |
| Width | 11.66 in (296.16 mm) |
| Depth | 6.37 in (161.80 mm) |
