Square D

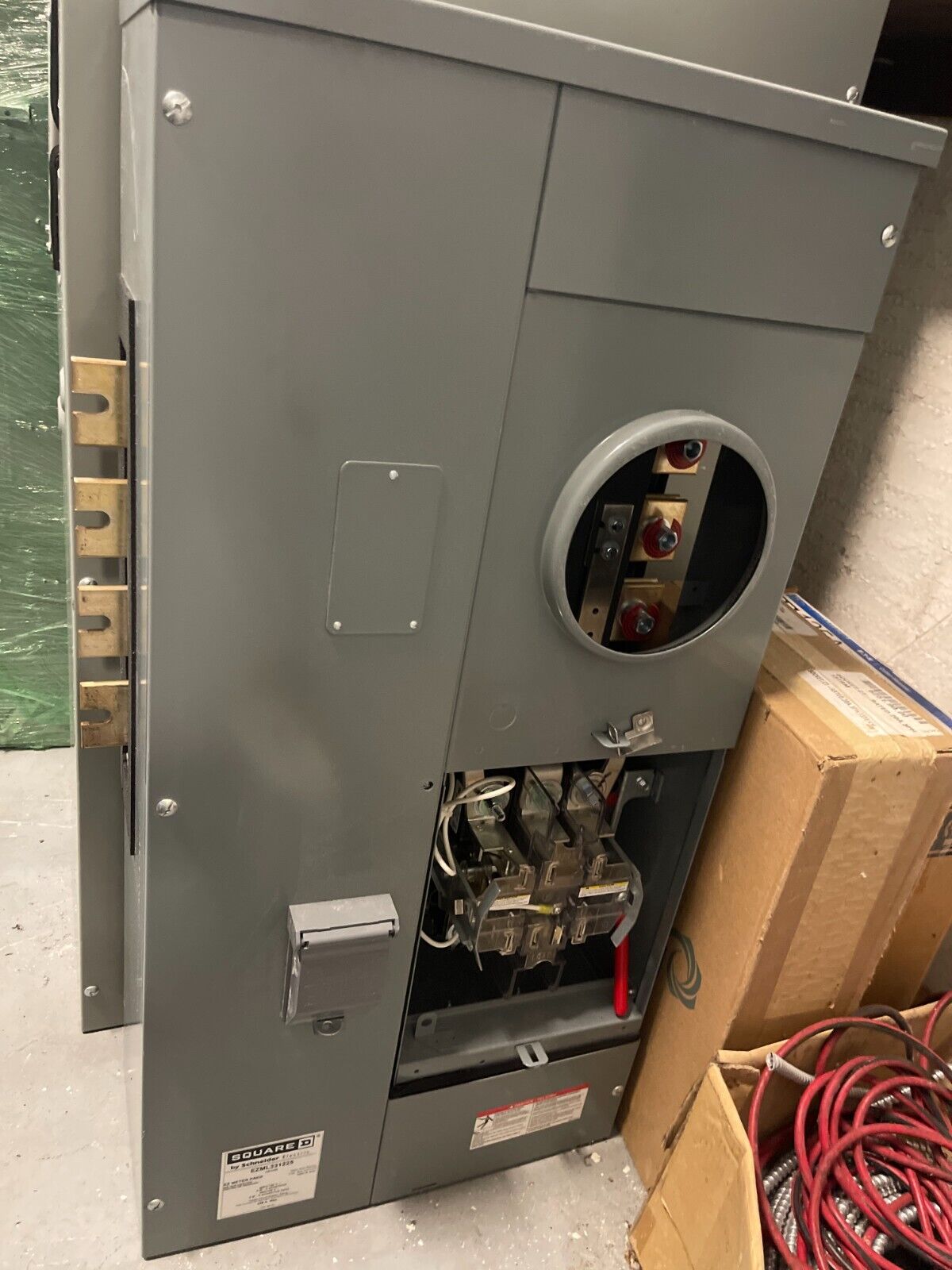

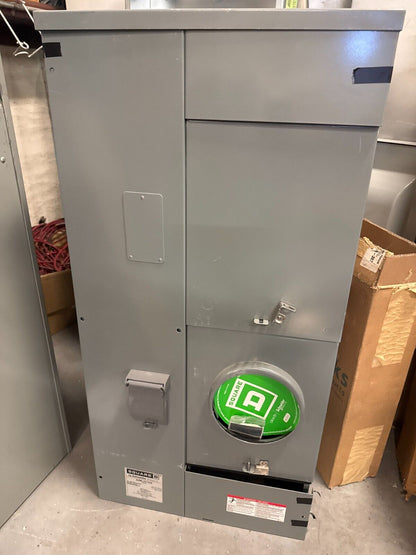

Square D EZML331225 EZ Meter-Pak 225A 208Y/120VAC lever bypass ringless 1200A
Square D EZML331225 EZ Meter-Pak 225A 208Y/120VAC lever bypass ringless 1200A
Regular price
$3,700.00 USD
Regular price
Sale price
$3,700.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
arrow2_down
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 1 seven jaw socket for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Read less
Specifications
arrow2_down
| Product | Meter Center Branch Unit |
|---|---|
| Current Rating | 225 A |
| Type | Meter-Pak |
| Bus Rating | 1200 A |
| Number of Jaws | 7 with jaw release |
| Number of Meter Sockets | 1 |
| Bypass Type | Lever bypass |
| Socket Type | Ringless |
| Certifications | UL Listed |
|---|---|
| Busbar Material | Aluminium/copper: busbar |
| Enclosure Material | Steel |
| Enclosure Rating | NEMA 3R |
| Maximum Voltage Rating | 208Y/120 V AC 240/120 V delta AC |
| Mounting | Surface |
| Phase | 3 phase in 3 phase out |
| Wire Configuration | 4-wire |
| Height | 39.06 in (992 mm) |
| Width | 19.4 in (494 mm) |
| Depth | 9.4 in (240 mm) |
| Net Weight | 106.087 lb(US) (48.120 kg) |
