Square D

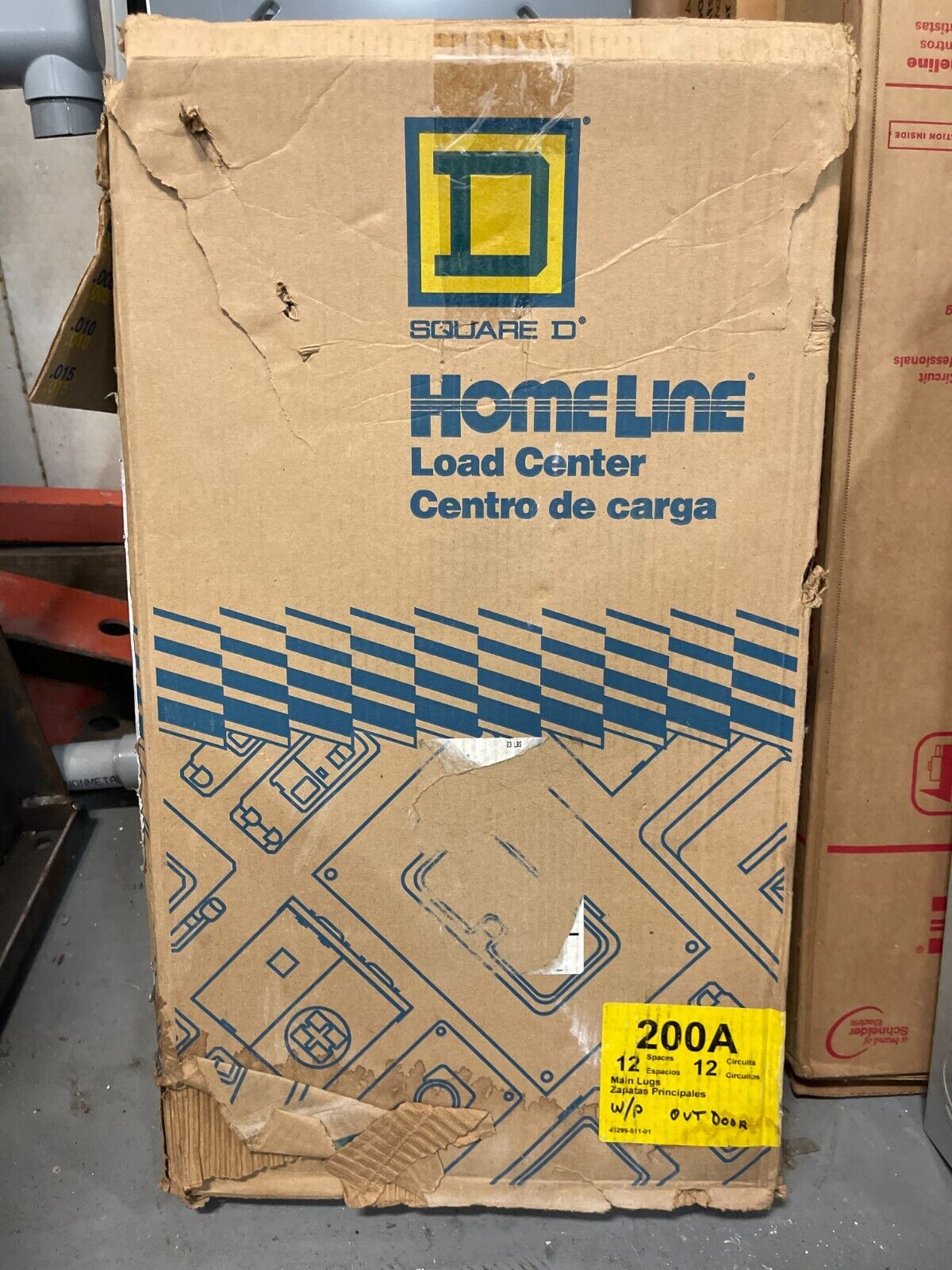

Square D HOM12M200PRB Load Center 1Ph 12 Space 12 Circuit 200A Outdoor
Square D HOM12M200PRB Load Center 1Ph 12 Space 12 Circuit 200A Outdoor
Regular price
$800.00 USD
Regular price
Sale price
$800.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
arrow2_down
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 12 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 26.02 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.
Read less
Specifications
arrow2_down
| Product Type | Load Center |
|---|---|
| Marketing Trade Name | Homeline |
| Load Center Type | PoN Convertible Mains (breaker) |
| Rated Current | 200 A |
| Number of Spaces | 12 |
| Maximum Number of Single Pole Circuits | 12 |
| Enclosure Rating | NEMA 3R weatherproof enclosure |
| Cover Type | Surface cover |
| Electrical Connection | Lugs |
| Max Short Circuit Current Rating | 22 kA |
|---|---|
| Maximum Number of Tandem Breakers | 0 |
| Number of Phases | 1 phase 3 wires |
| Voltage Rating | 120/240 V AC |
| Wire Size | AWG 4...250 kcmil aluminium/copper |
| Ground Bar | Grounding bar (ordered separately) |
| Busbar Material | Tin plated aluminium: busbar |
| Enclosure Material | Welded galvannealed steel |
| Surface Finish | Baked enamel Gray |
| Box Number | 5R |
| Bus Rated Current | 225.0 A |
| Height | 26.02 in (661 mm) |
| Width | 14.8 in (375 mm) |
| Depth | 4.5 in (115 mm) |
