Square D

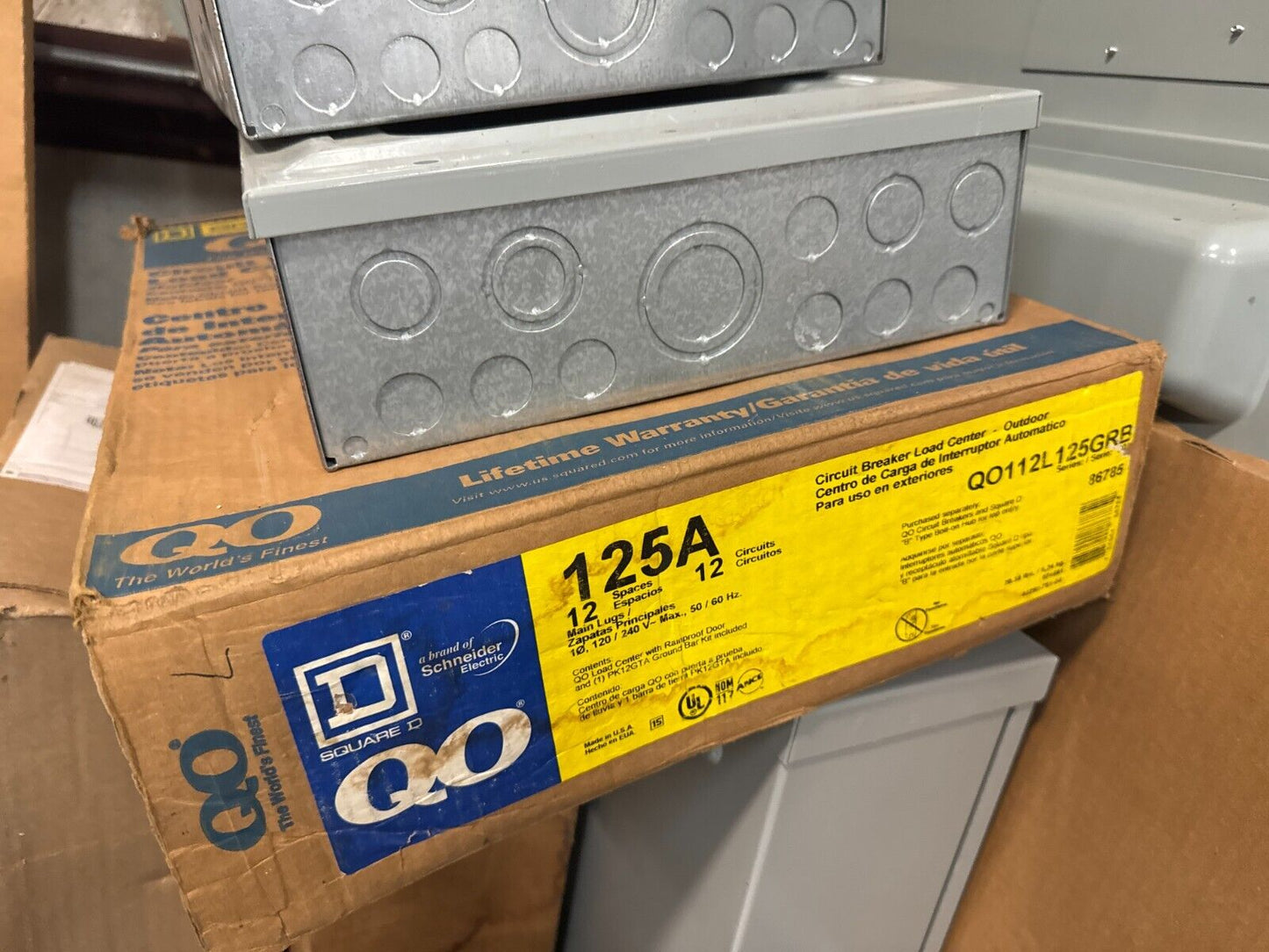

Square D QO112L125GRB Load Center 1-Ph 12 Spaces 12 Circuits 125A
Square D QO112L125GRB Load Center 1-Ph 12 Spaces 12 Circuits 125A
Regular price
$3,000.00 USD
Regular price
Sale price
$3,000.00 USD
Unit price
/
per
Couldn't load pickup availability
Specifications
arrow2_down
| Marketing Trade Name | QO |
|---|---|
| Product Type | Load Center |
| Cover Type | Surface cover |
| Tightening Torque | Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
|---|---|
| PoN Convertible Mains (lugs) | Convertible Mains (lugs) |
| Rated Current | 125 A |
| Number of Spaces | 12 |
| Max Short Circuit Current Rating | 65 kA |
| Maximum Number of Single Pole Circuits | 12 |
| Maximum Number of Tandem Breakers | 0 |
| Number of Phases | 1 phase 3 wires |
| Voltage Rating | 120/240 V AC |
| Wire Size | AWG 6...AWG 2/0 aluminium/copper |
| Ground Bar | Grounding bar included (not installed) |
| Electrical Connection | Lugs |
| Busbar Material | Tin plated copper: busbar |
| Enclosure Material | Welded galvannealed steel |
| Surface Finish | Baked enamel Gray |
| Box Number | 3R |
| Height | 18.9 in (481 mm) |
| Width | 14.8 in (375 mm) |
| Enclosure Rating | NEMA 3R weatherproof enclosure |
|---|---|
| Ambient Air Temperature for Operation | 23 °F (-5 °C) 104 °F (40 °C) |
| Product Certifications | UL Listed |
